JN-AMF Double Station Vertical Sand Shooting Horizontal Parting Molding Machine
Overview
JN-AMF series of automatic molding machine with vertical sand shooting, vertical molding, horizontal parting advantages as one.
The double station is equipped with two independent sets of upper and lower sand boxes. The vertical turnover mechanism rotates one set of upper and lower sand boxes up 90 degrees to the bottom of the sand shooting bucket, and applies air pressure sand shooting and compaction from the top sand bucket. When the operation of the compaction link is completed, the upper and lower pressure plates are backed back, the sand ejector head leaves the sand box, and the gate rod leaves the mold together with the upper compaction plate. In order to maintain the horizontal position of the sandbox to complete the unpacking operation, turn the vertical turnover mechanism further down 90 degrees.
The connecting plate is driven by the cylinder to rise to the lower plane of the sand mold, while the top punching plate is driven by the oil cylinder to push the sand mold from the sand box to the bottom, and the sand mold is smoothly lowered to the pushing table by adjusting the back pressure of the connecting cylinder. At this time, the pushing device pushes the sand mold onto the pouring cooling line from fast to slow, and the whole process is a molding cycle.
After the completion of compaction and demoulding, the two sets of upper and lower sand boxes are replaced by 180 degree rotating mechanism to carry out the work flow of the next cycle.
Features
1. Linear Adjustable Compaction Ratio: Compaction ratio can be precisely adjusted linearly, flexibly adapting to production requirements of different castings and molding sands with strong process compatibility.
2. High-Precision Mold Opening & Closing: Superior positioning accuracy for mold opening and closing, ensuring consistent sand mold dimensions and effectively reducing the casting reject rate.
3. Intelligent Fault Indication: Equipped with a visual fault prompt system for quick fault location, greatly reducing equipment maintenance difficulty and downtime.
4. Convenient Mold Change: Efficient mold replacement process, compatible with existing old templates without additional modification, minimizing upfront investment and changeover time.
5. Efficient Vertical Sand Shooting: Upper and lower flasks rotate 90° upward to enable top-down vertical sand shooting and compaction, delivering uniform sand filling, excellent compaction, and superior molding quality.
6. Horizontal Parting & Ejection: After compaction, flasks rotate 90° reversely for horizontal parting and smooth ejection, facilitating seamless connection with subsequent pouring and cooling processes.
7. Adjustable Sand Shooting Height: Sand shooting height can be linearly and precisely adjusted to control sand consumption on demand, reducing molding sand waste and lowering overall production costs.

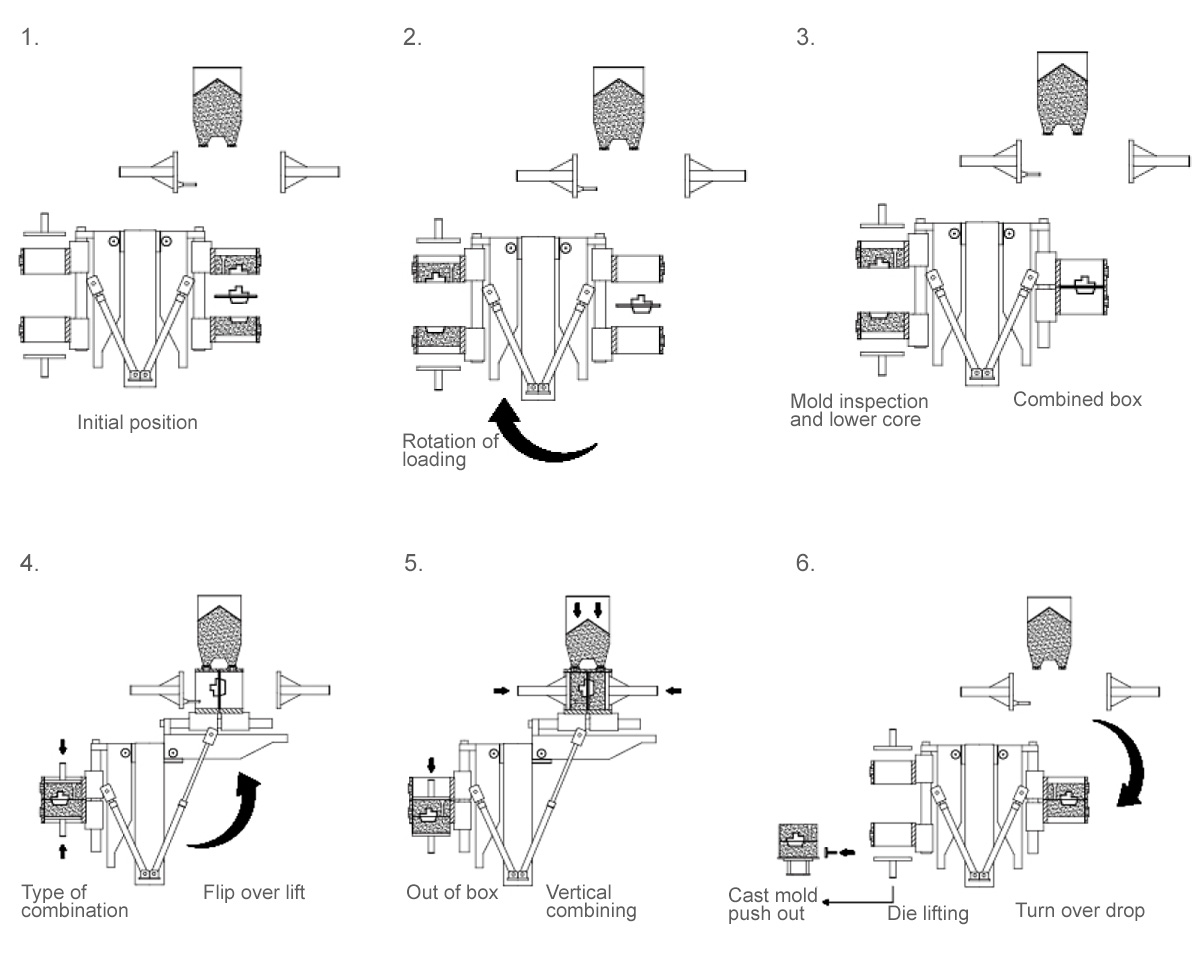

Molding Process Flow Chart
Specifications
| Model | JN-AMF2 | JN-AMF3 | JN-AMF4 | |
| Sand Mold Size | (L)×(W)mm | 406.4×508(16"×20") 400×500 |
508×609.6(20"×24") 500×600 550×650 |
609.6×711.2(24"×28") 600×700 |
| (H)mm | Cope: 130~200 Drag: 130~200 Arbitrary setting |
Cope: 130~200 Drag: 130~200 Arbitrary setting |
Cope: 180~250 Drag: 180~250 Arbitrary setting |
|
| Molding Process | Pneumatic Sand Shooting + Squeeze Compaction | |||
| Moulding Speed (Max) | 18sec/mold(Includes 9secs core setting time) | 18sec/mold(Includes 9secs core setting time) | 21sec/mold(Includes 9secs core setting time) | |
| Power Source | Pneumatic+Hydraulic (30kw) | Pneumatic+Hydraulic (37kw) | Pneumatic+Hydraulic (55kw) | |
| Air Consumption | 0.6Nm³/mold | 1.2Nm³/mold | 2.5Nm³/mold | |
| Operating Air Pressure | 0.5 - 0.6Mpa | |||
| Power Supply | Motive force AC 380V(50Hz/60Hz) Operation DC 24V | |||
| Mold Weight | 100 - 200Kg | 120 - 200Kg | 150 - 330Kg | |
Factory Image
